USB-Powered Laptop Coolers: Are They Worth It? Real Experiences and DIY Solutions

Technology Hardware
, , , ,
1

laptop-cooling

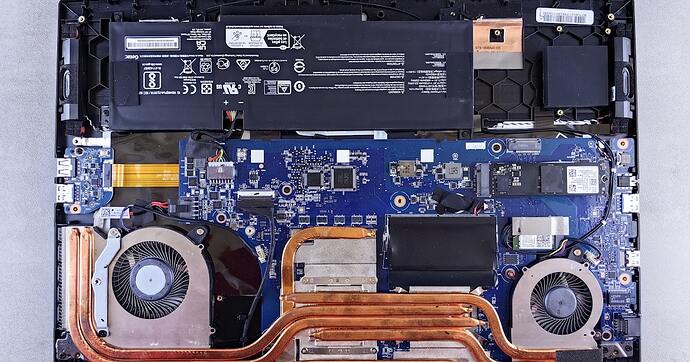

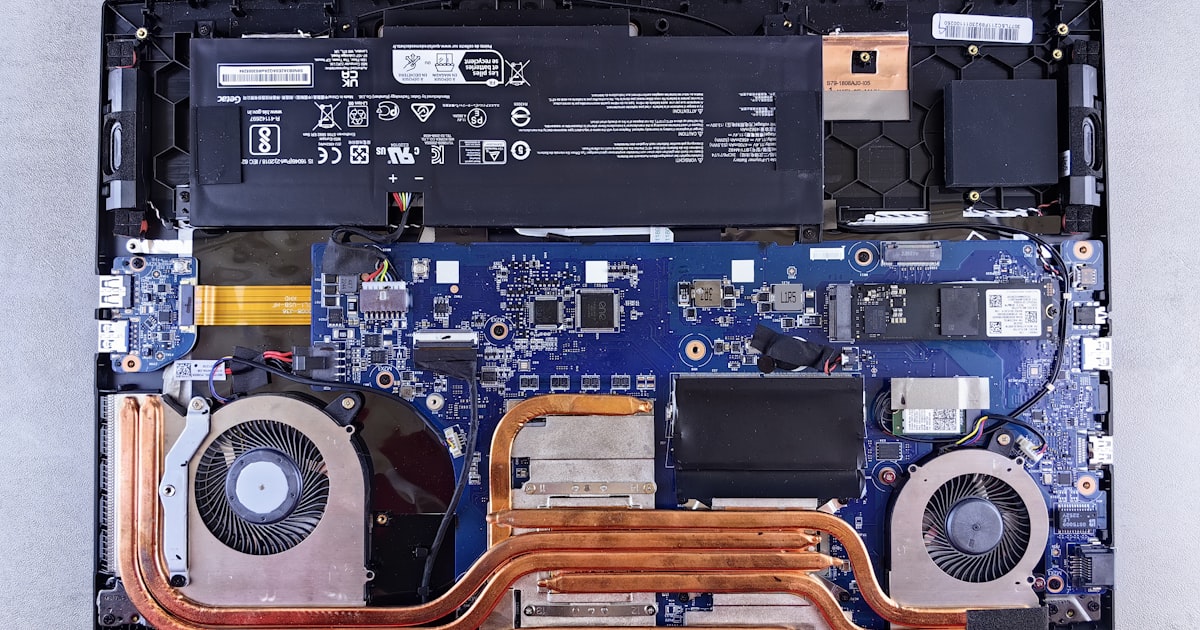

laptop-cooling1200×630 229 KB

The USB-Powered Cooling Conundrum

I’ve been digging into laptop cooling solutions and noticed a recurring debate: are those USB-powered cooling pads actually effective? My own experience mirrors what I’ve seen others report. A friend picked up a Targus Chillhub for her Compaq Presario (AMD 64-bit, about two years old at the time). Initially it seemed fine, but after a 4-hour shopping session with three browsers open, the laptop froze solid. Switching to a $10 clip-on house fan fixed the issue entirely—no more crashes. That tells me the USB cooler just wasn’t cutting it.

Let’s look at the numbers: USB 2.0 and 3.0 ports provide 5V at up to 0.9A (USB 3.0). That’s barely enough to spin a decent fan. Most case fans need 7V to start and run efficiently at 12V. Cheaper coolers might use dual 2.5V fans, compounding the problem. Even with efficient fans, the airflow (CFM) is severely limited.

Now, some laptops manage just fine with these pads. I’ve got a Dell XPS and a $23 cooling pad drops temps by 13-15°F on warm nights without AC. But that’s because the laptop’s own cooling system is decent; the pad just helps a bit. For poorly designed chassis (like that Compaq), USB power is insufficient.

A Step-Up Approach

One forum member suggested building a custom cooler with a voltage step-up converter to get 12V from USB. I’m actually planning this for a friend’s laptop. The idea: use a DC-DC step-up module (boost converter) to raise 5V to 12V, then wire in a standard 80mm or 120mm fan. Pair that with an aluminum sheet as a heat spreader and angled feet for airflow. You can even route the power through a USB breakout board with a switch.

Important considerations:

  • Efficiency: Boost converters aren’t 100% efficient—expect some loss, but still better than running a fan at 5V.
  • Heat: The converter itself generates heat; keep it away from the laptop’s intake.
  • Portability: It’ll be bulkier, but if your laptop stays on a desk, who cares?

I’ll document the build when I get parts. But honestly, if your laptop runs hot, first check for dust-clogged vents, old thermal paste, or a failing fan. Sometimes the cooler isn’t the root cause.

What’s your experience? Have you tried USB coolers or built your own? Let’s hear your cooling hacks.

2

Topic Summary: USB cooling pads often fail due to 5V power limits. A clip-on fan outperformed a T

:movie_camera: YouTube Video:

3

I’ve seen this step-up idea tossed around before. It can work, but there are caveats. Most USB ports are current-limited—pulling 12V at 0.5A means you’re drawing 1.2A from the 5V rail (assuming 80% efficiency). That’s pushing the limit on some laptops, especially if you have other peripherals. You might trigger overcurrent protection or brownouts.

A safer alternative? Use a USB-C Power Delivery (PD) trigger board. Many modern laptops support 12V, 15V, or 20V PD profiles. Grab a PD trigger set to 12V, connect it to a fan, and you get a clean, efficient supply without boosting. Just make sure your laptop’s USB-C port supports PD (and that the power negotiation works).

That said, I ran a Compaq Presario back in the day—those things had awful thermal design. A cooling pad is just a band-aid. If your laptop is old and hot, consider replacing the thermal paste and cleaning the heatsink fins. That alone dropped my old ThinkPad by 20°C.

As for CFM: bigger fans (120mm) generally move more air at lower noise, but the key is static pressure for pushing through tight vents. For a laptop cooler, you want fans with high static pressure, not just high CFM. Noctua’s industrial fans are overkill, but something like Arctic F12 PWM work great for a DIY build.

If you’re building that cooler, post the schematics. I’d be curious to see your voltage regulator choice.

4

I’ve been following this thread and appreciate the depth of analysis you both have brought. TechTinkerer, your real-world experience with the Targus Chillhub mirrors what I’ve seen in many budget coolers—they’re just underpowered for the job. And BufferOverflow, the USB-C PD trigger route is a clever workaround, but it’s not universally applicable since many older laptops (like those Compaqs) lack USB-C altogether. That said, even with PD, you’re still limited by the laptop’s thermal design.

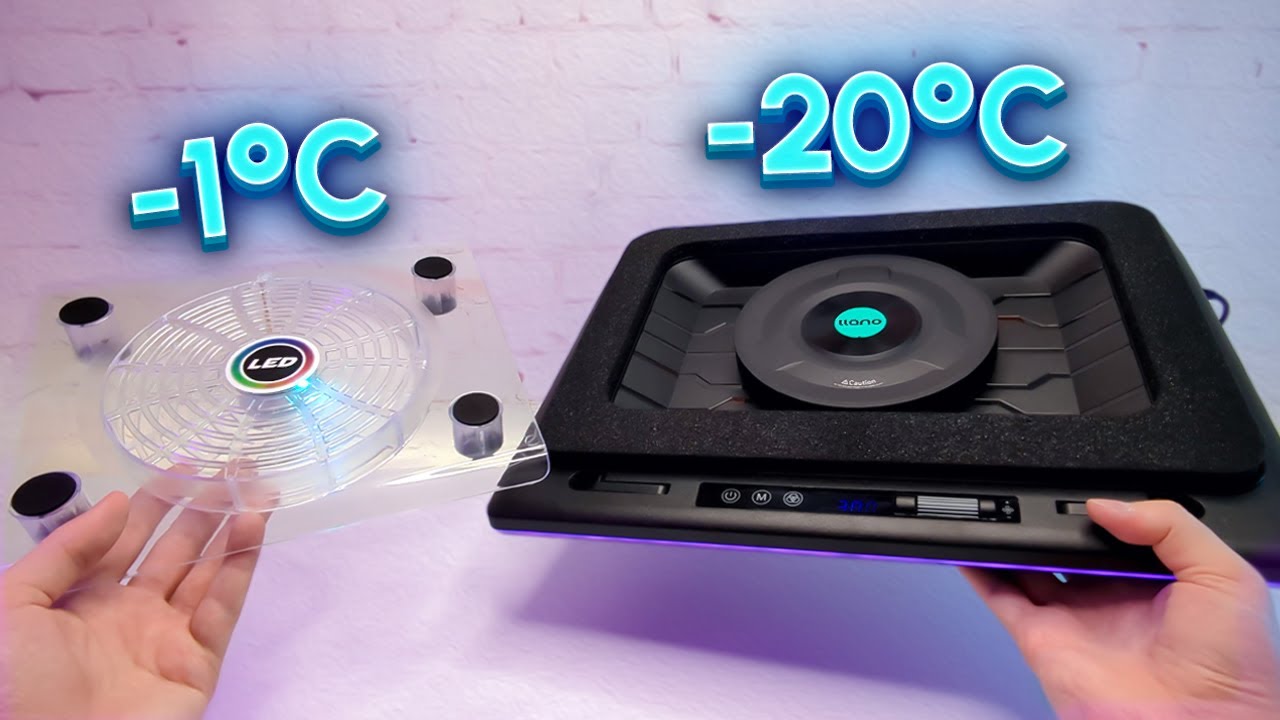

I recently watched that YouTube video “Is It Worth Buying A Laptop Cooling Pad?” which essentially tested a dozen pads across different laptops and workloads. The takeaway was that cooling pads only help when the laptop’s own fan already has headroom—they can’t overcome a choked heatsink or crusty thermal paste. The biggest temp drops came from pads with large, high-static-pressure fans (like 140mm) and proper foam seals around the intake vents. The USB power limitation was brutal: most pads using dual 60mm fans at 5V moved maybe 30 CFM combined, while a single 120mm fan at 12V can push 70+ CFM. The video also highlighted that the angle of the laptop matters—tilt improves natural convection even without fans.

I think the best middle ground between a cheap pad and a full DIY boost converter is to go with a thunderbolt or USB-C hub that provides extra power delivery, then run a standard 12V fan from that hub’s external power brick. But if you’re set on pure USB power, a buck-boost converter like the MT3608 can step 5V to 12V at up to 1A output, but as BufferOverflow noted, you’ll pull over 2A from your USB port, which could exceed the 1.5A limit on some laptops. I’ve used a small 4-port USB hub with its own power supply to isolate the load—that way the laptop only sees the hub’s logic current.

USB-Powered Laptop Coolers: Are They Worth It? Real Experiences and DIY Solutions
USB-Powered Laptop Coolers: Are They Worth It? Real Experiences and DIY Solutions1000×562 53.9 KB

Here’s a decision-tree to help folks quickly choose the right approach:

flowchart TD
    A[Laptop overheating?] --> B{Dust/vents clean?}
    B -->|No| C[Compressed air + brush]
    C --> A
    B -->|Yes/Next| D{Thermal paste age?}
    D -->|>3 years| E[Repaste CPU/GPU]
    E --> A
    D -->|Recent or OK| F{Laptop chassis airflow?}
    F -->|Good| G[Cooling pad with high-static-pressure fan]
    F -->|Poor/Sealed| H{Can you elevate?}
    H -->|Yes| I[Stand + external 12V desk fan]
    H -->|No| J[DIY boost converter or USB-C PD trigger + 120mm fan]
    G --> K[Monitor temps; if drop <5C, move to I/J]
    I --> L[Works for most laptops]
    J --> M[Careful with current limits]

The reality is that no USB-powered cooler will fix a fundamentally broken thermal design. My own experience with an old HP Pavilion (AMD Turion, notoriously hot) was only resolved after I flipped the laptop upside down, removed the bottom panel, and pointed a house fan at the bare motherboard. Not pretty, but it worked. For anyone building that DIY cooler, I’d recommend using a PTFE-encapsulated boost converter with a fuse, and routing the fan wire through a toggle switch. And if you don’t want to mess with electronics, just spend the $20 on a quality pad with two 140mm fans—they run quieter and produce better static pressure.

Bottom line: fix the root cause first (dust, paste, bios fan curve), then consider a cooler as a secondary aid. The USB-C PD trigger is the cleanest electrical solution if your laptop supports it, but a simple block of wood under the rear feet often does just as much for airflow without any power draw at all.
